RELI

L1P L/G

STINSON AT-19 Reliant STINSON SR Reliant STINSON V-77 Reliant

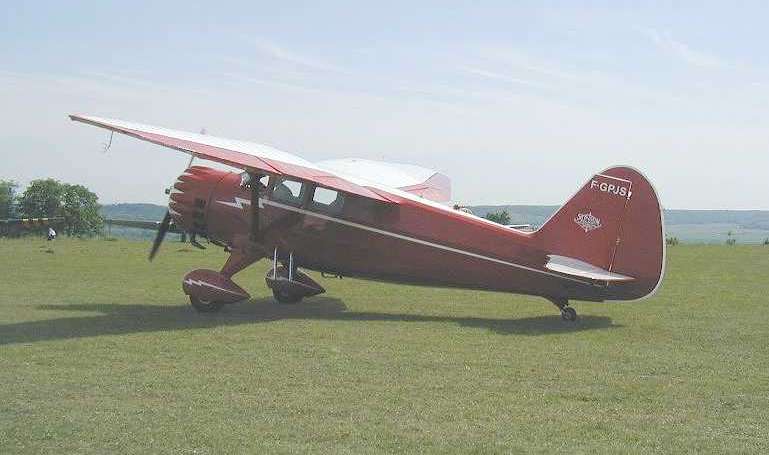

STINSON AT-19 Reliant STINSON SR Reliant STINSON V-77 Reliant RELI aircraft photograph

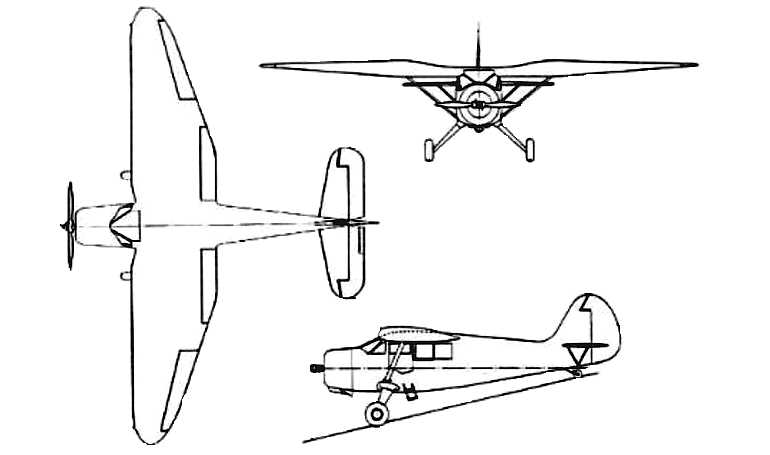

STINSON AT-19 Reliant STINSON SR Reliant STINSON V-77 Reliant RELI 3D view
Technical Data
Wing Span (m)12.8
Length (m)8.3
Height (m)2.5
MTOW (t)1.8
Fuel Capacity (ltr)300
Maximum Range (Nm)700
Persons On Board4
Take Off Distance (m)210
Landing Distance (m)220
Absolute Ceiling (x100ft)155
Optimum Ceiling (x100ft)120
Maximum Speed (kts/M)135
Optimum Speed (kts/M)124
Maximum Climb Rate (ft/min)700
Manufacturers
  • STINSON AT-19 Reliant
  • STINSON SR Reliant
  • STINSON V-77 Reliant
