R44

H1P L/G

ROBINSON R-44 Astro ROBINSON R-44 Clipper ROBINSON R-44 Raven

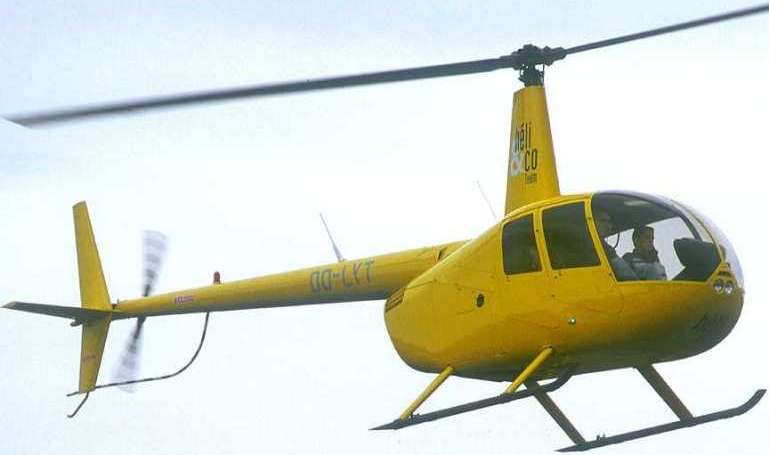

ROBINSON R-44 Astro ROBINSON R-44 Clipper ROBINSON R-44 Raven R44 aircraft photograph

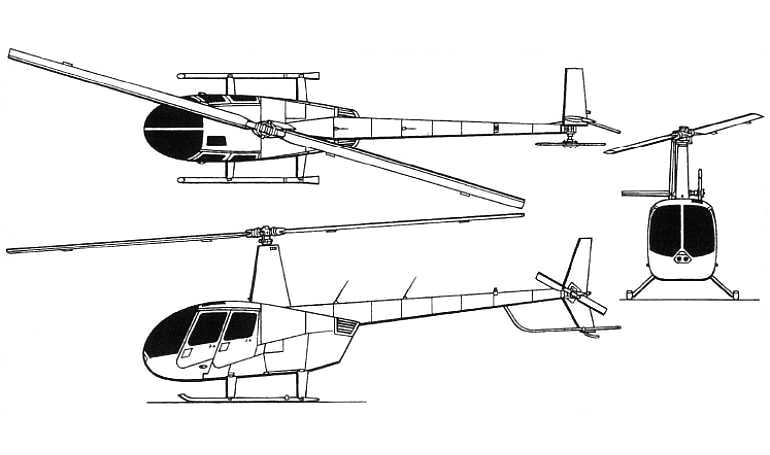

ROBINSON R-44 Astro ROBINSON R-44 Clipper ROBINSON R-44 Raven R44 3D view
Technical Data
Wing Span (m)-
Length (m)11.7
Height (m)3.2
MTOW (t)1.1
Fuel Capacity (ltr)116
Maximum Range (Nm)350
Persons On Board4
Take Off Distance (m)-
Landing Distance (m)-
Absolute Ceiling (x100ft)140
Optimum Ceiling (x100ft)80
Maximum Speed (kts/M)
Optimum Speed (kts/M)113
Maximum Climb Rate (ft/min)1000
Manufacturers
  • ROBINSON R-44 Astro
  • ROBINSON R-44 Clipper
  • ROBINSON R-44 Raven
