I23

L1P L/G

INSTYTUT LOTNICTWA I-23 Manager PZL-SWIDNIK I-23 Manager

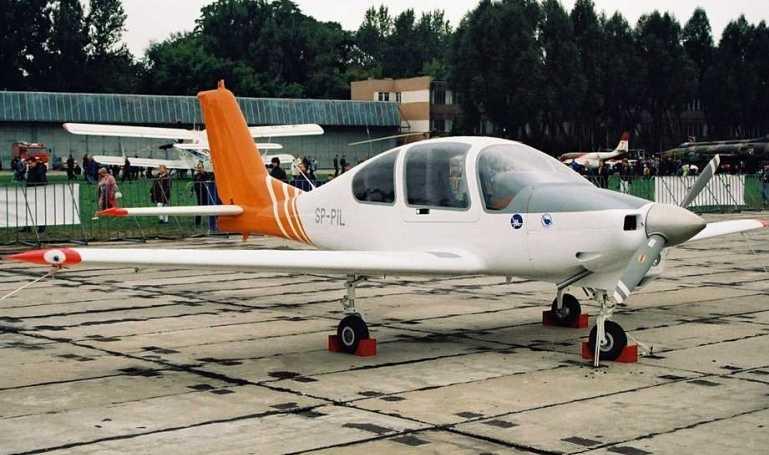

INSTYTUT LOTNICTWA I-23 Manager PZL-SWIDNIK I-23 Manager I23 aircraft photograph

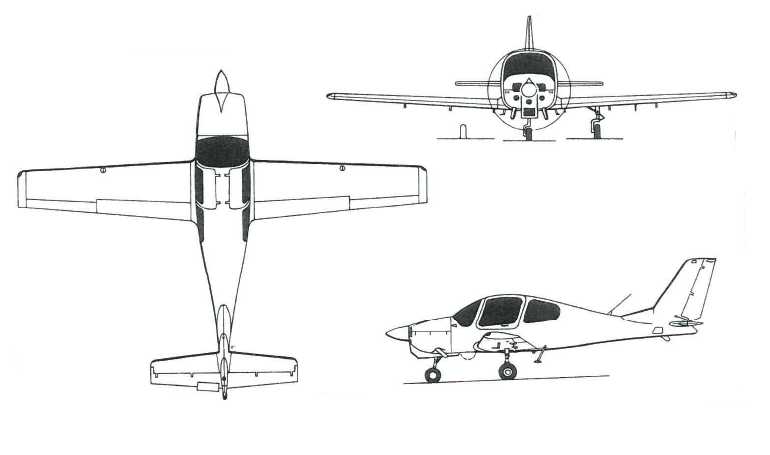

INSTYTUT LOTNICTWA I-23 Manager PZL-SWIDNIK I-23 Manager I23 3D view
Technical Data
Wing Span (m)8.9
Length (m)7.1
Height (m)2.5
MTOW (t)1
Fuel Capacity (ltr)170
Maximum Range (Nm)770
Persons On Board4
Take Off Distance (m)600
Landing Distance (m)600
Absolute Ceiling (x100ft)140
Optimum Ceiling (x100ft)100
Maximum Speed (kts/M)153
Optimum Speed (kts/M)143
Maximum Climb Rate (ft/min)1000
Manufacturers
  • INSTYTUT LOTNICTWA I-23 Manager
  • PZL-SWIDNIK I-23 Manager
