AM3

L1P L/G

AERFER-AERMACCHI AM-3 AERITALIA-AERMACCHI AM-3 ATLAS AM-3 Bosbok

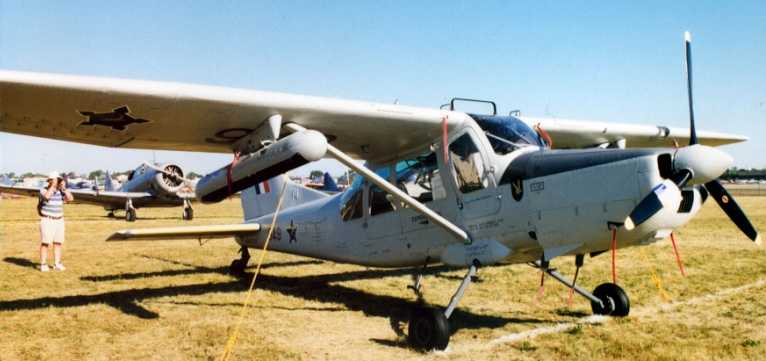

AERFER-AERMACCHI AM-3 AERITALIA-AERMACCHI AM-3 ATLAS AM-3 Bosbok AM3 aircraft photograph

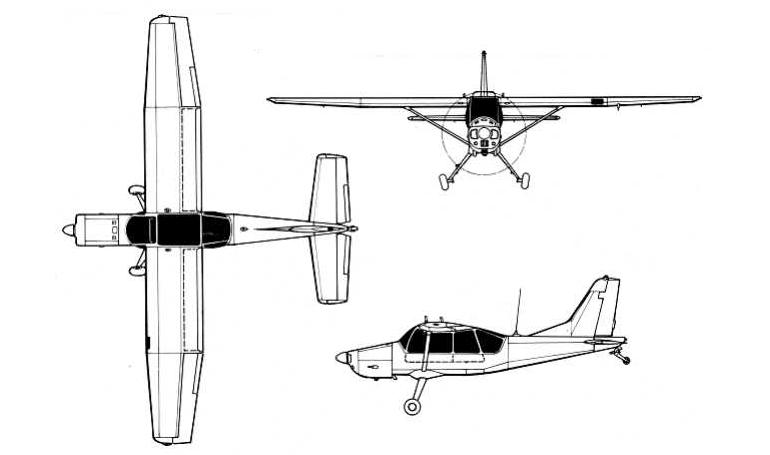

AERFER-AERMACCHI AM-3 AERITALIA-AERMACCHI AM-3 ATLAS AM-3 Bosbok AM3 3D view
Technical Data
Wing Span (m)11.7
Length (m)8.7
Height (m)2.7
MTOW (t)1.7
Fuel Capacity (ltr)240
Maximum Range (Nm)530
Persons On Board3
Take Off Distance (m)
Landing Distance (m)
Absolute Ceiling (x100ft)275
Optimum Ceiling (x100ft)240
Maximum Speed (kts/M)150
Optimum Speed (kts/M)132
Maximum Climb Rate (ft/min)1050
Manufacturers
  • AERFER-AERMACCHI AM-3
  • AERITALIA-AERMACCHI AM-3
  • ATLAS AM-3 Bosbok
