AA5

L1P L/G

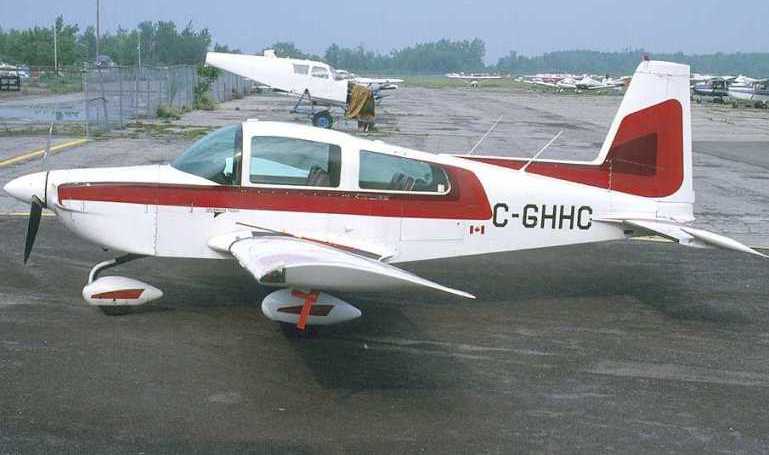

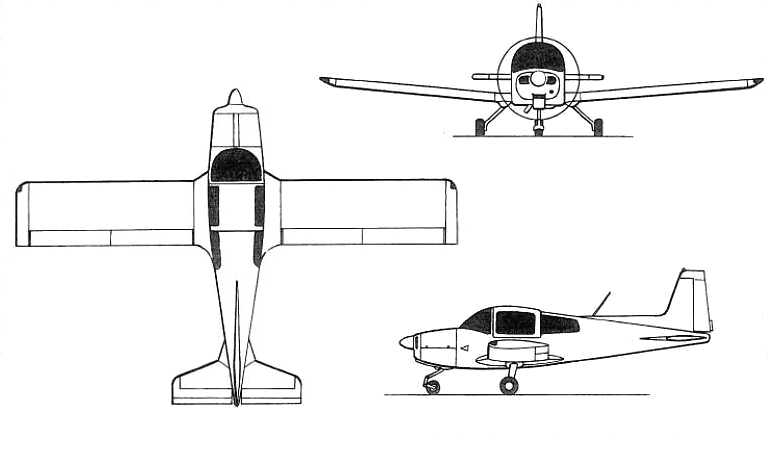

AMERICAN AA-5 Traveler AMERICAN GENERAL AG-5 Tiger GRUMMAN AMERICAN AA-5 Cheetah GRUMMAN AMERICAN AA-5 Tiger GRUMMAN AMERICAN AA-5 Traveler GULFSTREAM AMERICAN AA-5 Cheetah GULFSTREAM AMERICAN AA-5 Tiger TIGER AG-5 Tiger

Technical Data

Wing Span (m)9.6

Length (m)6.7

Height (m)2.4

MTOW (t)1

Fuel Capacity (ltr)140

Maximum Range (Nm)500

Persons On Board4

Take Off Distance (m)490

Landing Distance (m)340

Absolute Ceiling (x100ft)125

Optimum Ceiling (x100ft)85

Maximum Speed (kts/M)137

Optimum Speed (kts/M)128

Maximum Climb Rate (ft/min)660

Manufacturers

AMERICAN AA-5 Traveler
AMERICAN GENERAL AG-5 Tiger
GRUMMAN AMERICAN AA-5 Cheetah
GRUMMAN AMERICAN AA-5 Tiger
GRUMMAN AMERICAN AA-5 Traveler
GULFSTREAM AMERICAN AA-5 Cheetah
GULFSTREAM AMERICAN AA-5 Tiger
TIGER AG-5 Tiger
